Beam™
Hot Spring® Spas

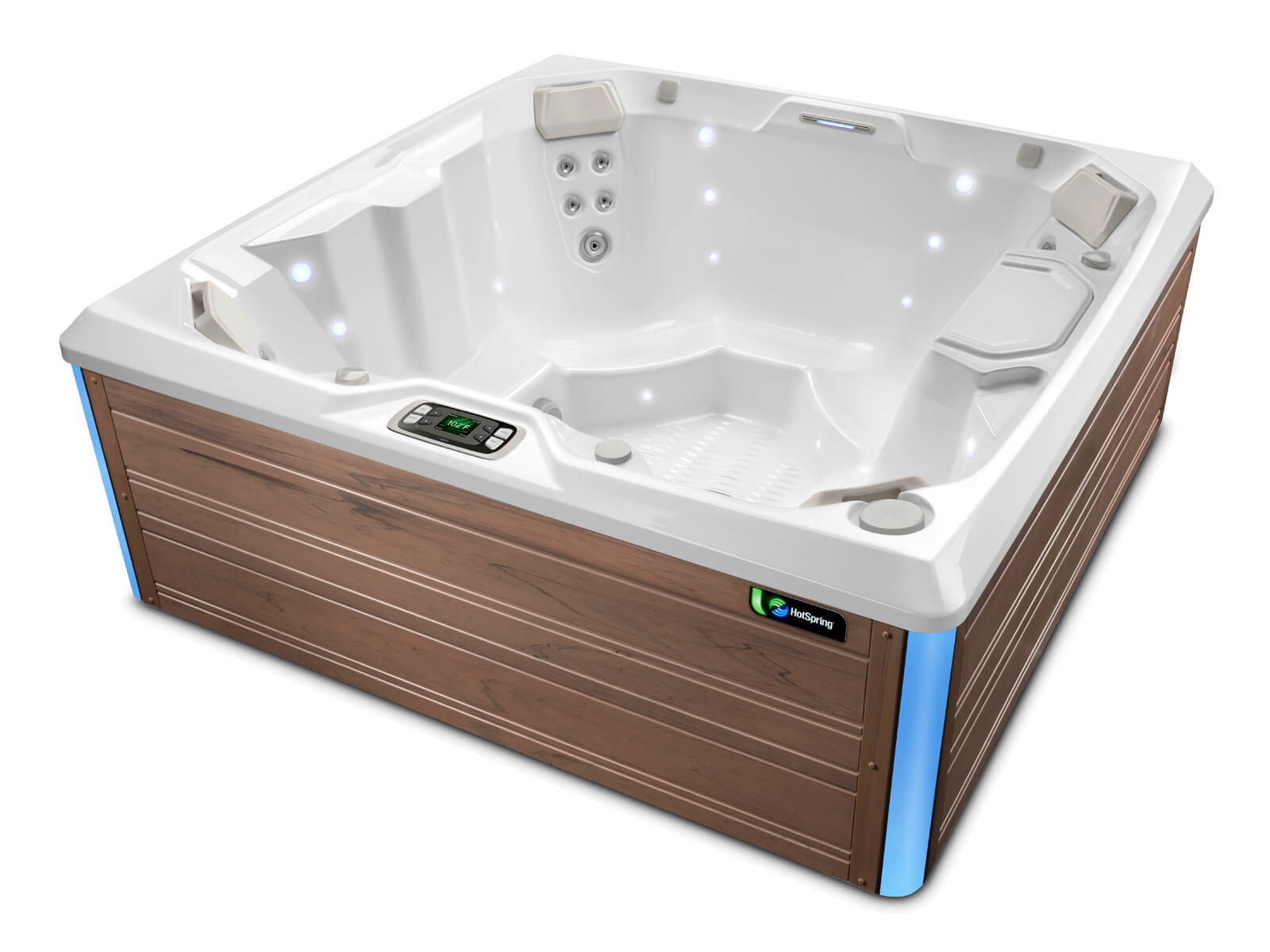

The Beam is a premium spa that is perfect for tighter spaces. This small yet spacious model provides seating for four and a variety of jets to customize your experience.
Specs
Additional Specs
Jet Systems
More Details
Features
Dimensions
7’ x 7’ x 36” 213 cm x 213 cm x 92 cm
Voltage
230 V
Jets
40
Water Care System
FreshWater® Salt System Ready
Operating Capacity
Adjust the stream up, down, left and right for soothing comfort right where you want it. Personalize with ComfortControl®.
Insulation
FiberCor®
Filled Weight
4,820 lb. 2,185 kg
Water Feature
Waterfall
Jet Pump 1
Wavemaster® 6200 Two-Speed 1.5 HP Continuous Duty 3.2 HP Breakdown Torque
Jet Pump 2
Wavemaster® 6000 One-Speed 1.5 HP Continuous Duty 3.2 HP Breakdown Torque
Circulation Pump
SilentFlo 5000®
Control System
IQ 2020® with LCD Control 230 V / 50 amp, 60 Hz Includes G.F.C.I. Protected Subpanel
Cabinet Colors
Almond Havana Storm
Shell Colors
Alpine White Pearl Pebble Tuscan Sun
Cover Colors
Cabinet Almond Havana Storm
Steps (Optional)
Hot Spot® Collection Step or Polymer Step
Water Capacity
330 g 1,250 L
Dry Weight
845 lb. 383 kg
Lighting System (interior)
Multi-Color LED Points of Light
Lighting System (exterior)
Multi-Color LED Lighting with Timer
Jet Pump 3
No
Cover Lifters
CoverCradle® CoverCradle II UpRite® Lift ‘n Glide®
Seats
7
Jet Types
3 - XL Directional Hydromassage 2 - XL Rotary Hydromassage 3 - Directional Hydromassage 2 - Rotary Hydromassage 30 - Directional Precision®
Comfort Control®
Yes
SmartJet® System
No
100% No-Bypass Filtration
No
High-Flow Tri-X® Filters
No
Dual-Action Filtration
No
Effective Filtration Area
65 sq. ft.
Floor Drain
Yes
Proprietary Heater
No-Fault® 4,000 W / 230 V
Patented Pump Shroud
Yes
Custom-Fit Insulated Cover
WeatherPro™ 4" Tapered Core with Hinge Seal
Energy Standards
Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
Diagnostic/Ready Light
No
Polymeric Substructure
No
Smart Monitoring System
No

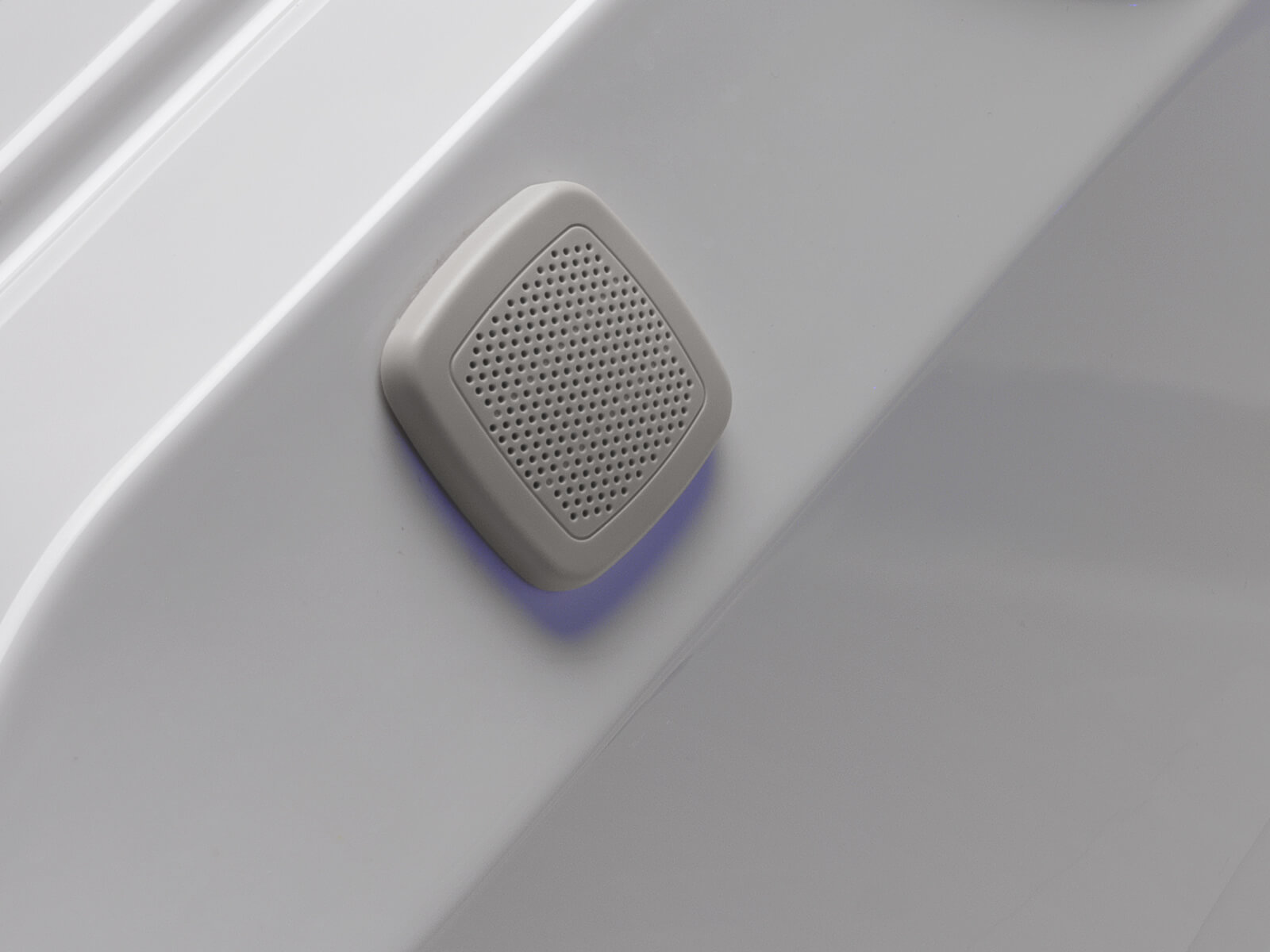

Wireless Music System
Yes
Subwoofer
Yes
FreshWater® III Ozone System
Yes
Adjustable up, down, right and left for a pinpoint muscle treatment and targeted massage right where you want it.
The spinning action sooths muscles with a rhythmic, circular motion. Personalize with ComfortControl®.
Get deep muscle relief with a powerful stream that adjusts up, down, left and right. Personalize with ComfortControl®.

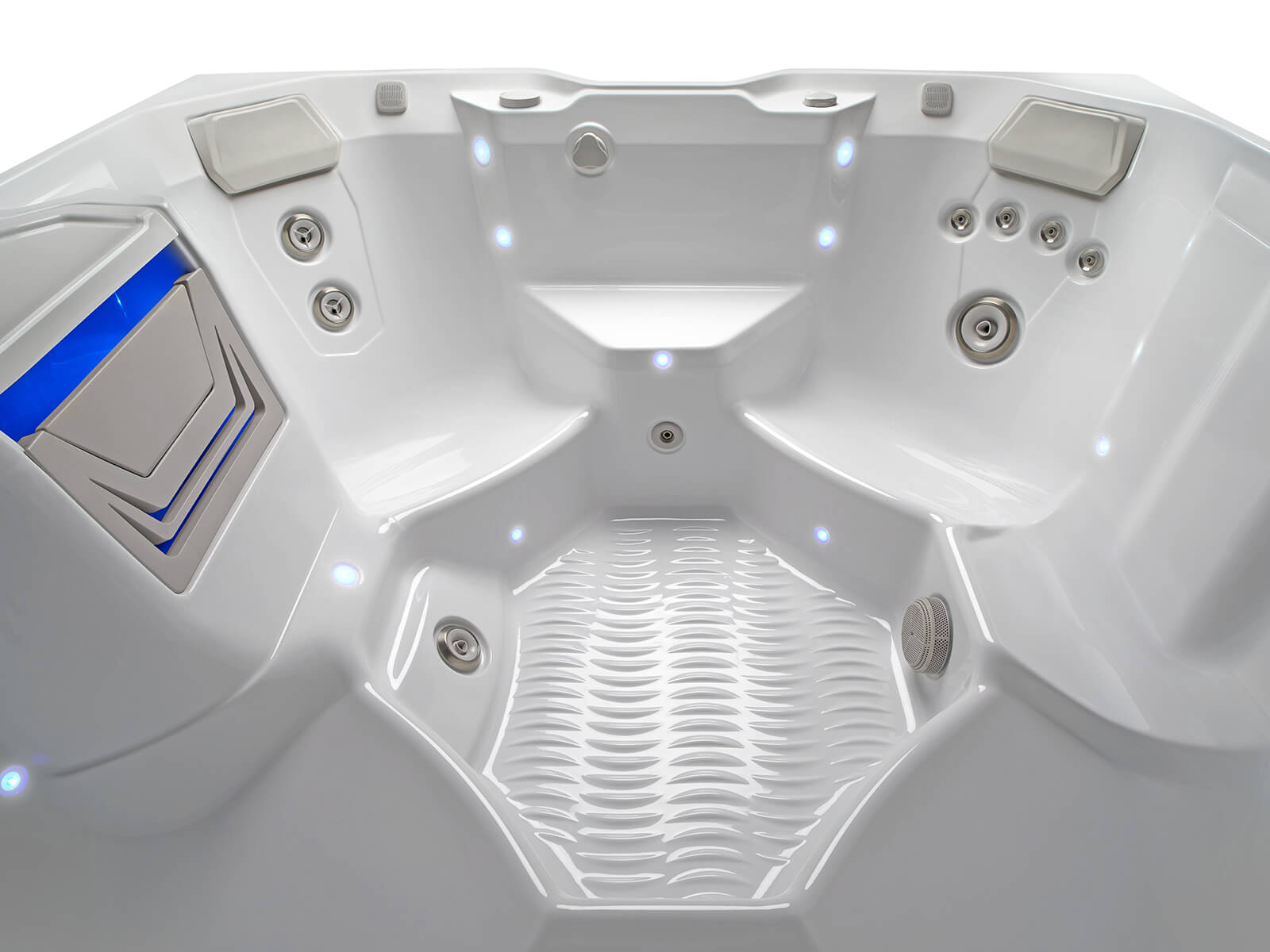

Shaped to comfortably cradle your body for a long relaxing soak.
###moreDetails###
Better Massage
Comfortable seats with purposefully arranged jet systems work together to target specific muscle groups. The result is a distinctive massage from your neck to your shoulders, back, wrists, calves, and feet.
Personalized Control
The Comfort Control system lets you dial in your ideal experience from a soft touch to a powerful massage. Use the SmartJets system to customize water flow to different jet groups and seats throughout the spa.
Better Water
Crystal clear water is essential to a great spa experience. Highlife Collection spas offer exclusive technologies like FreshWater IQ smart, in-line water care system that helps you keep your spa water clean, balanced, and natural-feeling.
FreshWater Salt System Included
This system automatically generates chlorine from salt for soft, natural-feeling water without harsh odors, itchy skin, or irritated eyes. Keep your hot tub water clean and feeling great for up to a full year.

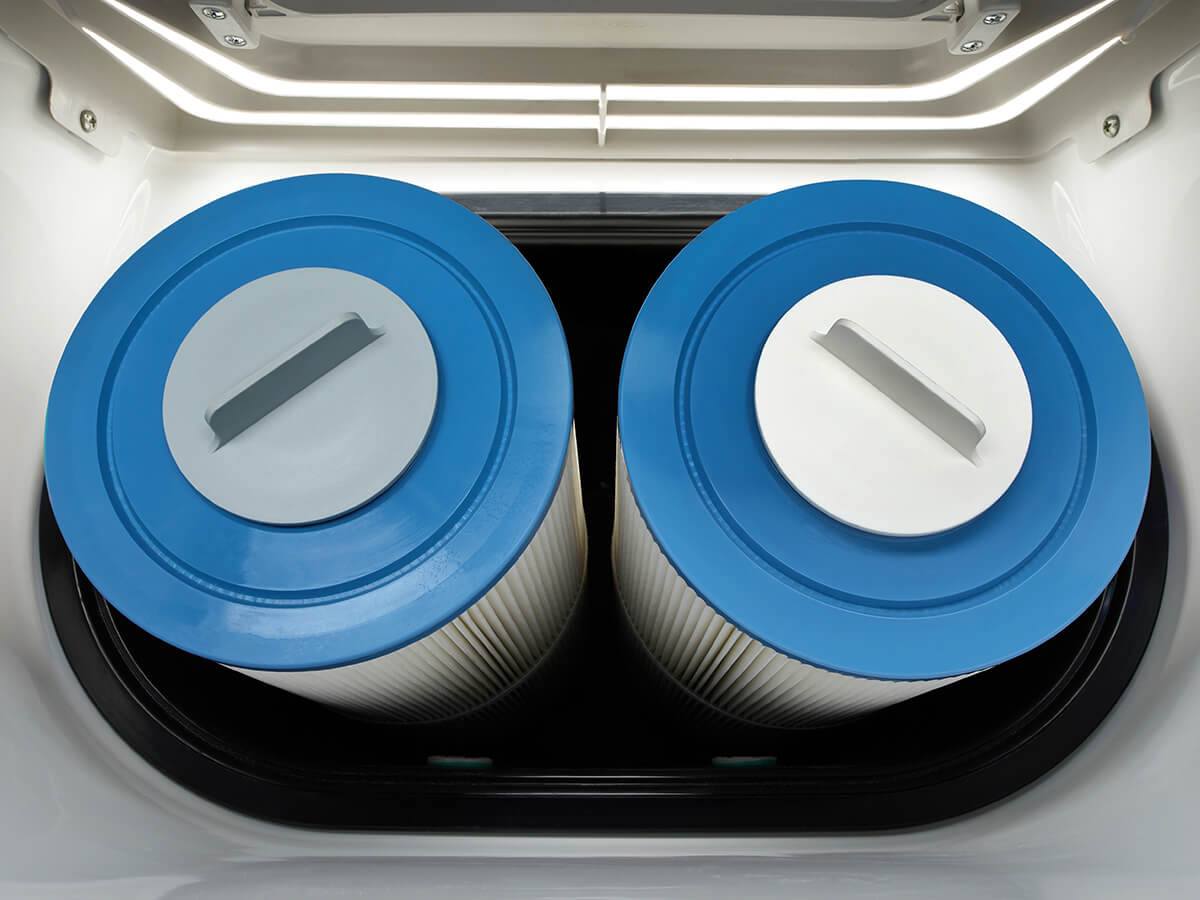

DUAL-ACTION FILTRATION
This two-filter design increases total filtration area to keep water cleaner with less maintenance. One filter is dedicated to the circulation pump, the other to the jet pumps to clean water when the jets are running.
MONEY-SAVING ENERGY EFFICIENCY
Limelight Collection spas feature an Energy Smart® System to reduce energy consumption. You can have peace of mind knowing that your spa will be hot and ready when you are, while keeping energy costs low.
Better Energy
Layers of high-density polyurethane foam insulate the spa shell. An insulated base pan creates insulating air space against cold ground.
The Absolute Best Hot Tub Ownership Experience
You can count on lasting quality and unparalleled customer care from a global network of dealers.
SEE THINGS IN A WHOLE NEW LIGHT
From the dramatic shell design to the brushed stainless steel jet details and beautiful lighting options, Limelight Collection spas turn heads.

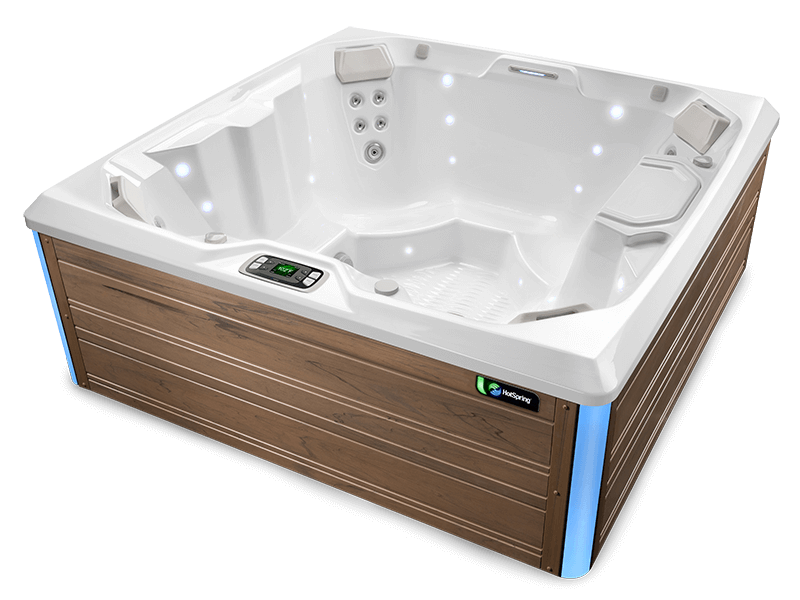

Visually Stunning
Comfortable, sculpted seating and stylish design details work together to create a design more like furniture than a hot tub.

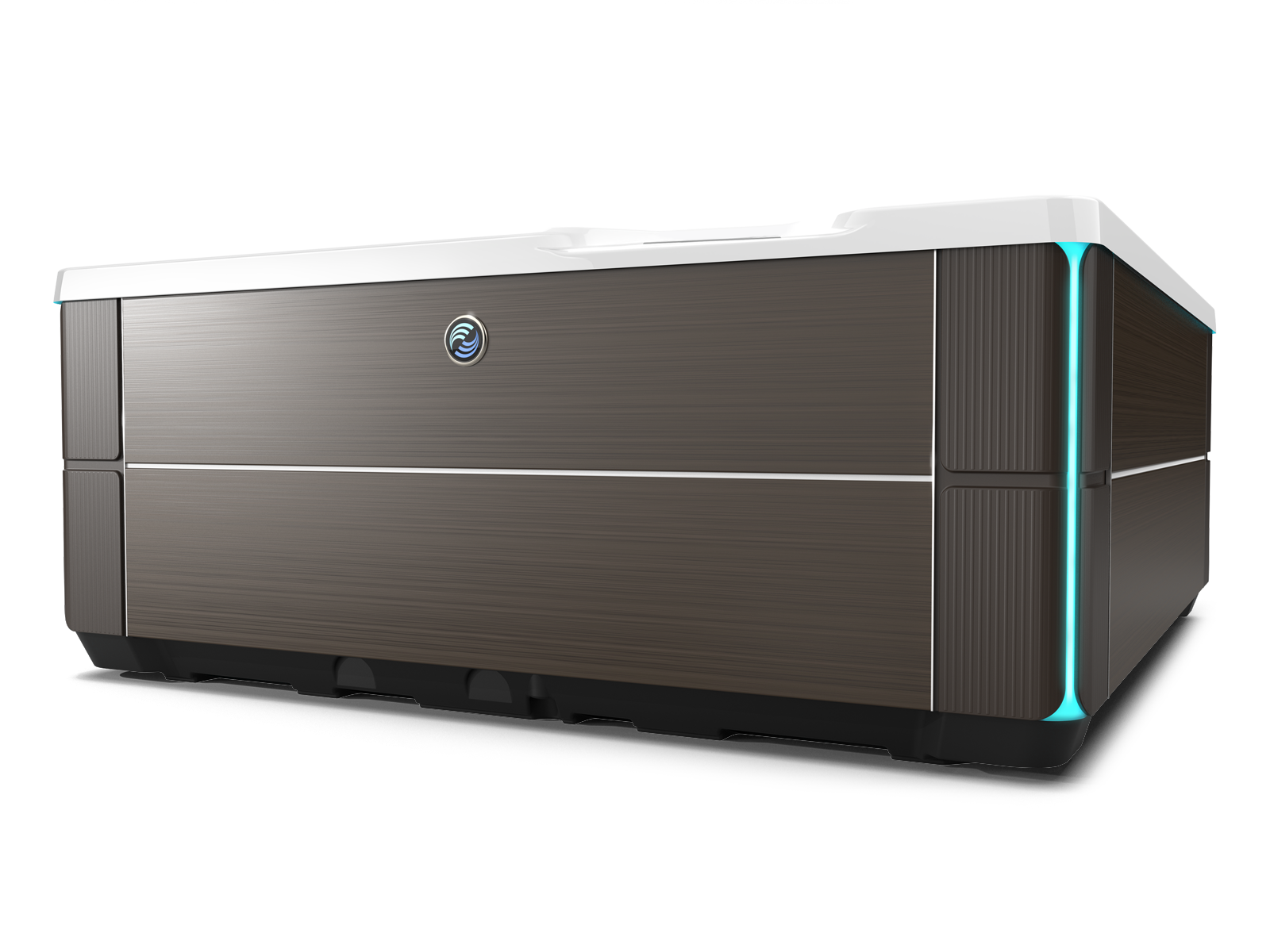

BEAUTIFUL AND DURABLE SIDING
Choose from three cabinet finishes and a variety of shell colors so you can create a look that’s just right for you.

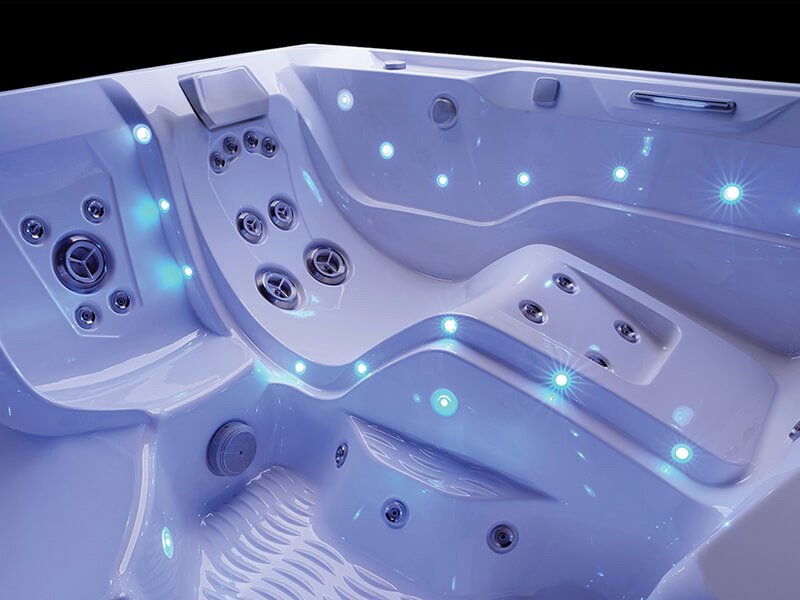

MULTI-COLOR LED LIGHTING

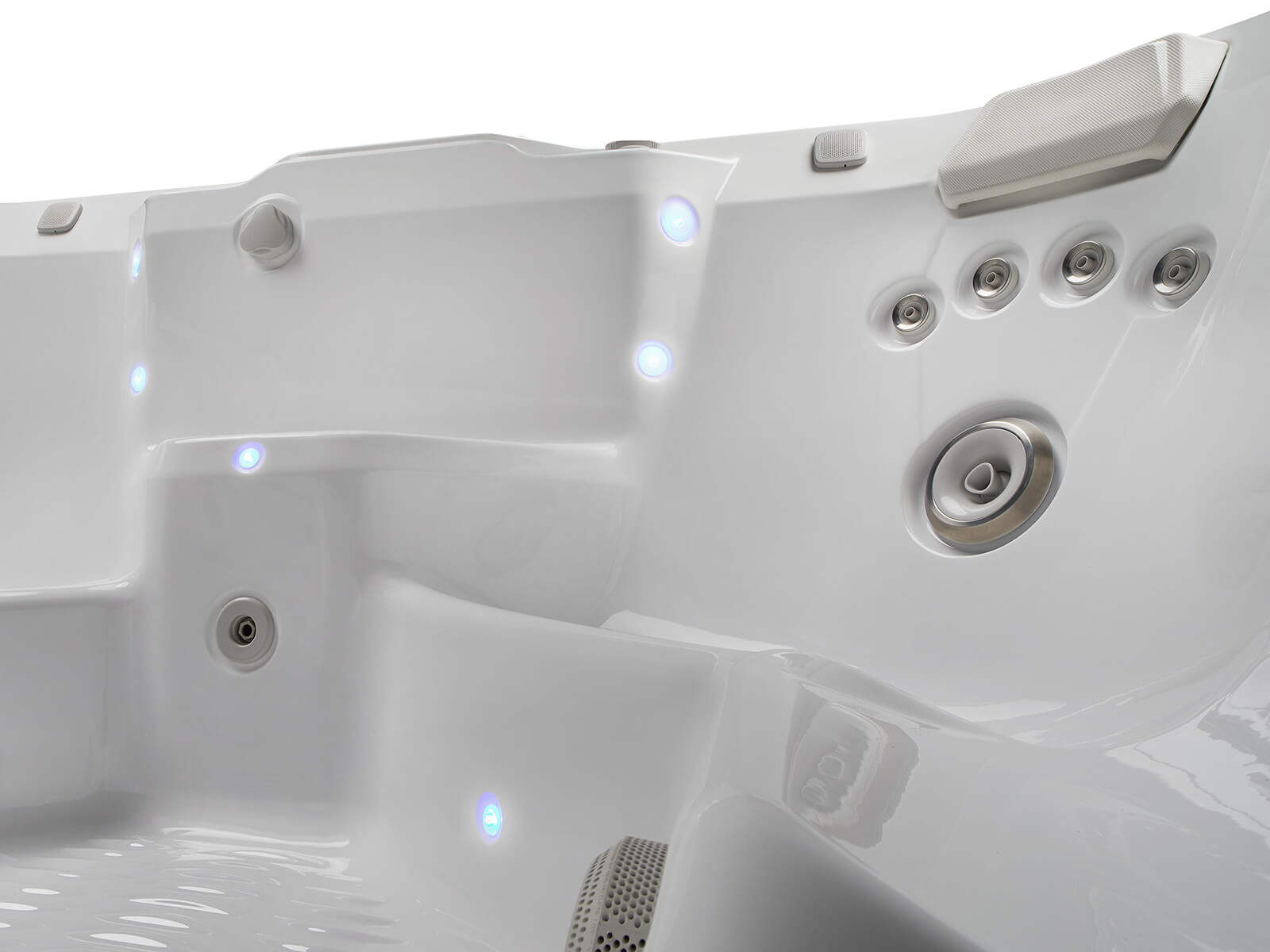

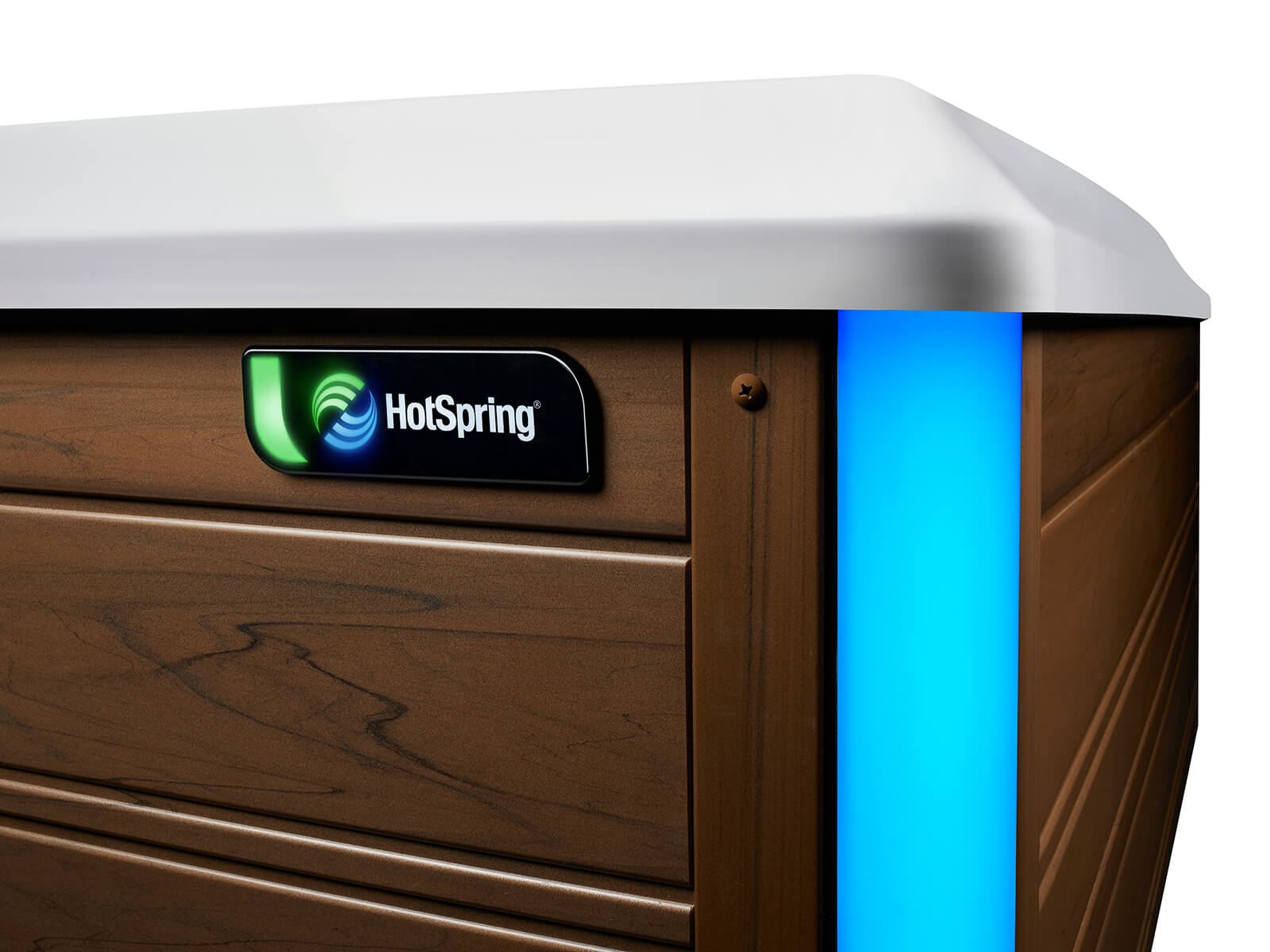

The interior lighting system features multiple points of LED light that accent the contours of the spa shell. Two exterior LED lights integrate with the front corners of the spa, creating an elegant look.
